ICE BANK BEER COOLERS
Bracton ice bank coolers have **extra long product coils** to ensure beer is dispensed at the optimum temperature. Reliable European built condensers ensure years of quality performance without failure. Tested to Australian Standards AS/NZS 60335.1 & AS/NZS 60335.2.75
- Built for **Australian conditions**
- High energy efficiency – advanced insulation
- Longest product lines in industry
- For the coldest ice bank dispensed beer
- Stainless case and floor pan
- Ideal for salty environments
- Rapid ice bank discharge hose (no need to siphon)
- Casing with integrated pump and coils
- Horizontal and vertical options
- New stylish front panel with cover inside to protect electrical parts
For frozen or iced fonts, consider upgrading your ice bank to Bracton’s **SubZero hybrid technology**. Delivering the benefits of a glycol system with reserve cooling capacity.

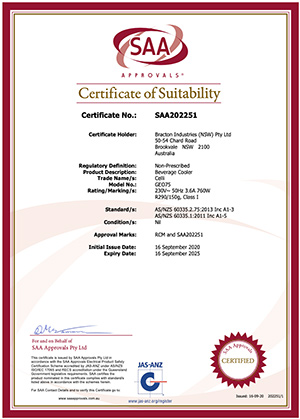

Bracton GEO Series have been tested to Australian electrical standards AS/NZ60335.1, AS/NZ60335.2.75 and have been **Registered as a Type B Device**, making them one of the only hydrocarbon Icebanks being able to be installed in QLD.
MOST ICE BANKS IN AUSTRALIA HAVE NOT BEEN TESTED TO AUSTRALIAN STANDARDS.
Model Specifications
| GEO20V R290 | GEO50V R290 | GEO50H R290 | GEO75H-8 R290 | BRAVE90BC |
|---|---|---|---|---|
|

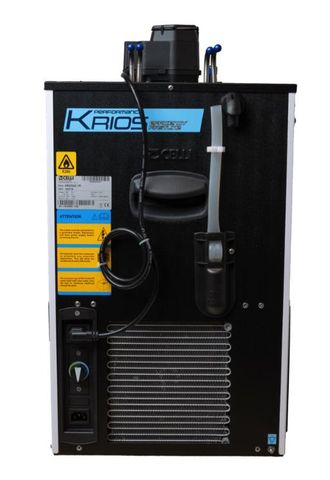

Coils: 2 Icebank: 8Kg Peak: 55 L/h (Δ 20C) Daily Avg: 19 L/h (Δ 20C) Coil Lengths: 10/12 |

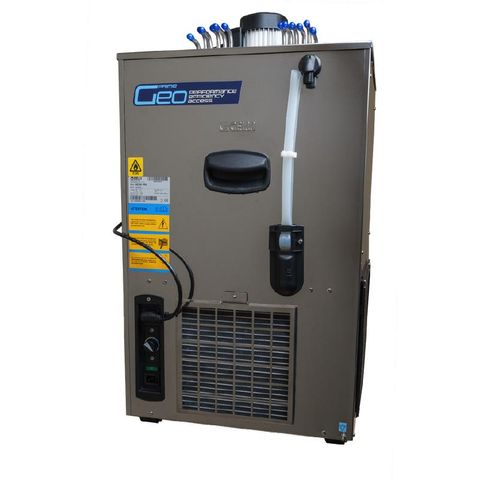

Coils: 4 (5 option) Icebank: 21Kg Peak: 124 L/h (Δ 20C) Daily Avg: 40 L/h (Δ 20C) Coil Lengths: 4 @ 20m + 13m *Option |

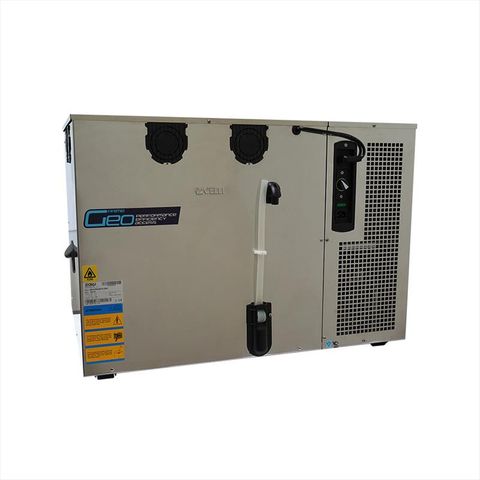

Coils: 4 (5 option) Icebank: 21Kg Peak: 124 L/h (Δ 20C) Daily Avg: 40 L/h (Δ 20C) Coil Lengths: 4 @ 20m + 13m *Option |

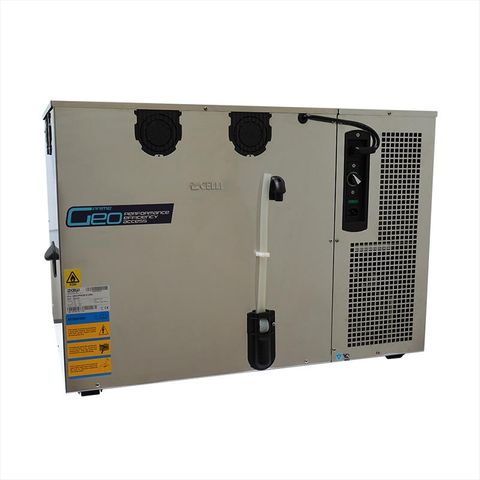

Coils: 8 Icebank: 29Kg Peak: 181 L/h (Δ 20C) Daily Avg: 58 L/h (Δ 20C) Coil Lengths: 5 @ 20m, 3 @13m |
Coils: 6 (8 option) Icebank: 39Kg Cooling: 2,213w Peak: 111 L/h (Δ 32C) Daily Avg: 94 L/h (Δ 32C) Coil Lengths: 20/20/20/20/20/20 |
